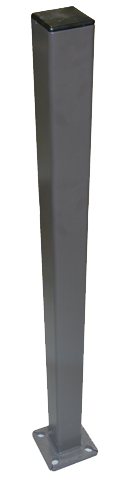

SQUARE STRAIGHT POLE
POLE SHAFT
The pole shaft is one piece construction, fabricated from a weldable carbon steel, and has uniform wall thickness. The shaft will have a minimum yield strength of 55,000 PSI, and conforms to ASTMA-500 grade C. The pole shaft has a full length longitudinal resistance weld and is uniformaly square in cross-section with flat sides, and rounded corners.
FINISH
A polyester thermosetting powder coat is electronically applied as standard on all finished poles. Standard finishes are Bronze, Black, and White. Consult your Techlight representative for pricing on custom finishes.
ANCHOR BASE
The anchor base is fabricated from a structural quality hot rolled carbon steel plate that meets a minimum yield strength 36,000 PSI. The anchor base telescopes the pole shaft and has a circumferential welded top and bottom.
ANCHOR BOLTS
Anchor bolts are fabricated from a commercial quality, hot rolled carbon steel bar with a minimum yield strength of 36,000 PSI. Each bolt is furnished with two heavy hex nuts and two flat washers and will ship
with poles unless otherwise specified.
