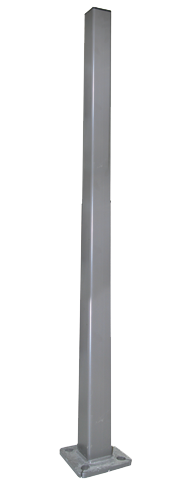

The pole shaft is one piece construction, fabricated from a weldable carbon steel, and has uniform wall thickness. The shaft will have a minimum yield strength of 55,000 PSI, and conforms to ASTMA-500 grade C. The pole shaft has a full length longitudinal resistance weld and is uniformaly square in cross-section with flat sides, radius corners and a uniform taper of approximately .10 inches per foot of length.

A polyester thermosetting powder coat is electronically applied as standard on all finished poles. Standard finishes are Bronze, Black, and White. Consult your Techlight representative for pricing on custom finishes.

The anchor base is fabricated from a structural quality hot rolled carbon steel plate that meets a minimum yield strength 36,000 PSI. The anchor base telescopesthe pole shaft and has a circumferential welded top and bottom.

Anchor bolts are fabricated from a commercial quality, hot rolled carbon steel bar with a minimum yield strength of 36,000 PSI. Each bolt is furnished with two heavy hex nuts and two flat washers and will ship with poles unless otherwise specified.
